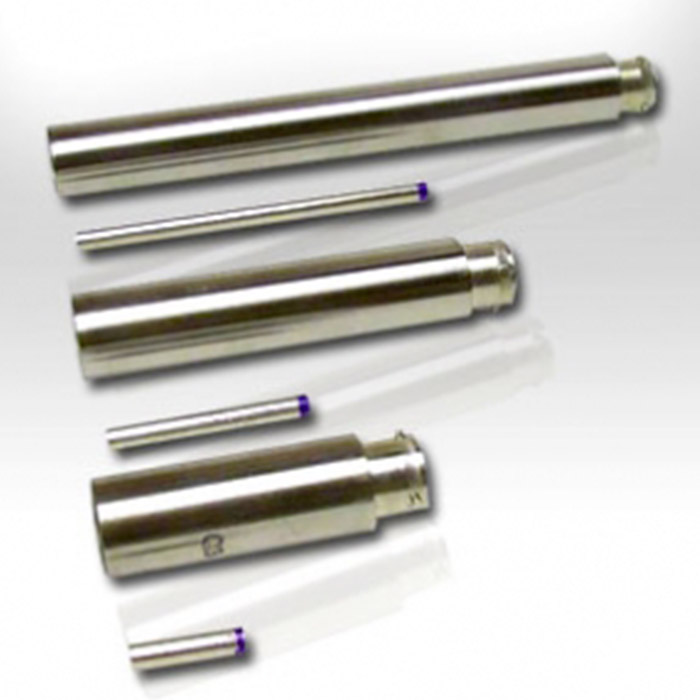

LVDT 0-10 V, free core, general purpose, with connector

Ideal for position control in industrial environments. Range from 2.5 to 500 mm. For positioning control equipment, valve control, cylinders in automation.

Strokes Available: from 2,5 mm to 500 mm
Power Supply: 15-24 VDC
Output: 0-10 VDC
Resolution: 0,25% (optional 0,1%)
External diameter : 19 mm
Working Temperature: from -20°C to +70°C
Frequency Response: 250 Hz
Protection Grade: IP68

Data Sheet

PDF Data Sheet
