PRESSURE SENSOR OEM 4LC_9LC Series

Piezoresistive OEM Pressure transmitters -40_150 °C, with embedded signal conditioning

The Series 4 LC…9 LC family of miniature OEM pressure transmitters combines a piezo resistive pressure sensor with -40…150 °C-capable signal conditioning in one compact, easy-to-integrate package.

Ranges available 4LC: 3_200 bar PAA: Absolute Sensor
Ranges available 7LC: 2_200 bar PAA: Absolute Sensor
Ranges available 7LC: 2_30 bar PA: Sealed Gauge
Ranges available 8LC: 1_200 bar PAA: Absolute Sensor
Ranges available 8LC: 1_30 bar PA: Sealed Gauge
Ranges available 9LC: 1_200 bar PAA: Absolute Sensor
Ranges available 9LC: 1_30 bar PA: Sealed Gauge

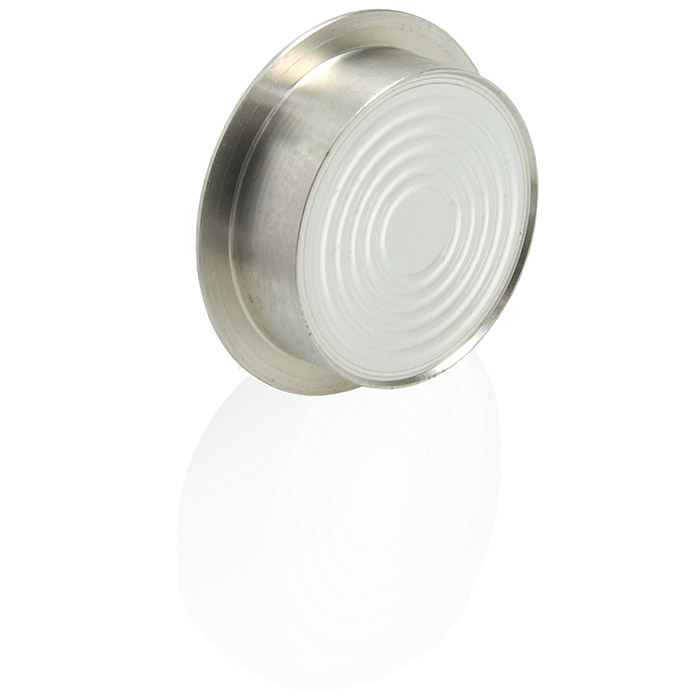

Ranges available 9FLC: 1_50 bar PAA: Absolute Sensor
Ranges available 9FLC: 1_30 bar PA: Sealed Gauge

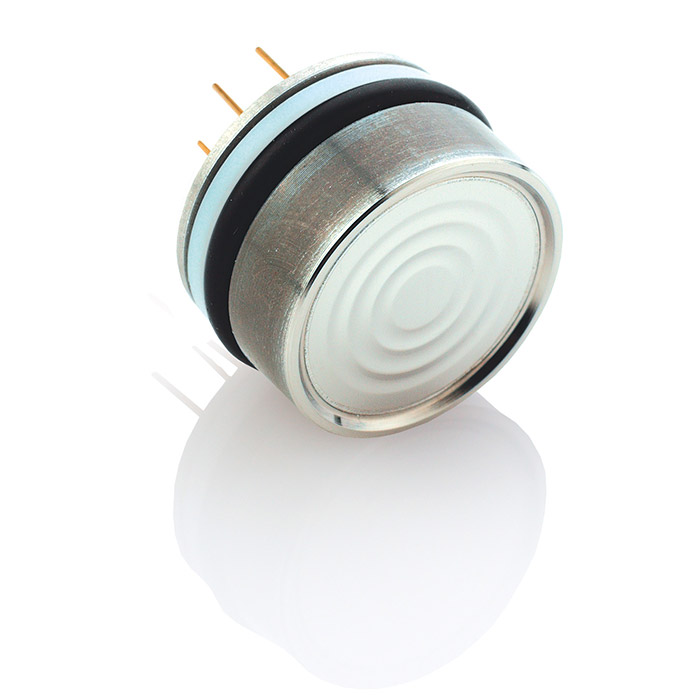

Ranges available 6LC HP: 200_1.000 bar
Ranges available 7LC HP: 200_1.000 bar
Temperatura Ranges available: -40°C to +150°C
Power Supply: 5 VDC ± 0,5 V
Output: 0,1_0,9 V/V (0,5_4,5 V ratiometric)
Accuracy: 0,8%_2,5% FS
